Ultra-Precision 0.18mm MR Electrolytic Tin Plate Coils for Extreme Rust Resistance
QuanJiang's MR-grade Electrolytic Tin Plate (ETP) & Tin-Free Steel (TFS) Coils redefine rust prevention in industrial packaging. Engineered with nano-crystalline tin layering (1.1–5.6 g/m²) and chromate passivation, these 0.18mm precision coils deliver unmatched protection against salt spray, acids, and humid environments.
✔ Triple-Layer Rust Barrier
Electrolytic tin matrix (pore-free density)
Chromium oxide nano-film (0.2µm)
DOS oil coating (transport protection)
✔ Cold-Rolled Precision
±0.01mm thickness tolerance
TS230-TH620 hardness options
✔ Multi-Industry Adaptability
Paint Cans: Resists ketone solvents
Seafood Tins: Blocks H₂S blackening
Aerosols: Withstands 150psi pressure
| Parameter | Specifications |
|---|---|
| Base Material | MR Prime Steel (Ultra-Low Carbon) |
| Thickness | 0.18–0.38mm (±0.01mm) |
| Tin Coating | 1.1/1.1 – 5.6/5.6 g/m² (differential options) |
| Salt Spray Test | 1,500hrs (ASTM B117) |
| Surface Energy | 35-40 dynes/cm (optimized for lacquering) |
| Coil Dimensions | ID: 508/610mm; Max OD: 1,250mm |
Corrosion Warranty: 5-year outdoor exposure guarantee
Production Efficiency: BA/CA annealing enables 1,200 cans/min stamping
Eco-Certified: 85% recycled content; REACH/ROHS compliant
Supply Power: 48,000 MT/month; 50-ton MOQ
| Application | Technical Superiority |
|---|---|
| Oil Containers | Resists biodiesel degradation (EN 14214) |
| Acidic Food Cans | 0% tin migration @ pH 3.0 (ISO 4531) |
| Chemical Drums | Compatible with xylene mixtures |
| Marine Packaging | 200hrs salt fog resistance (MIL-STD-810) |
Q: Why 0.18mm for aerosol cans?
A: 30% thinner than standard 0.25mm, reducing weight while maintaining 120psi burst strength.
Q: Certification for food contact?
A: Complies with FDA 21 CFR 175.300 & EU 10/2011 (tin migration <0.2ppm).
Q: How does chromium enhance rust resistance?
A: Forms amorphous oxide layer blocking O₂/H₂O penetration at molecular level.
Q: Lead time for 50-ton orders?
A: 20 days with MILL CERTIFICATE and SGS test reports.
Q: Recycling compatibility?
A: Direct EAF feed – coatings vaporize at 1,550°C.

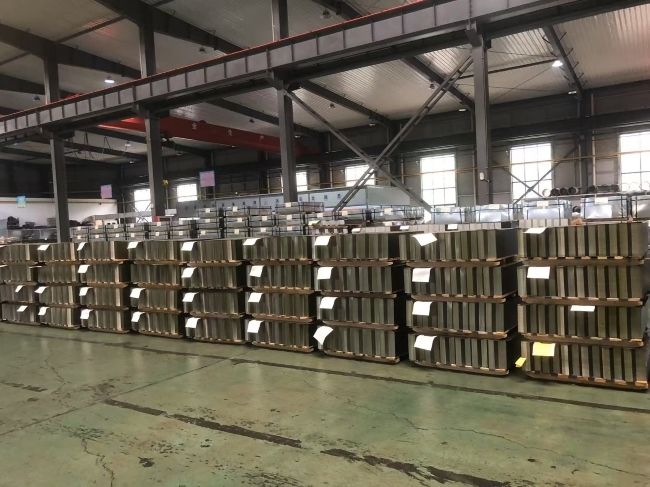

Electrolytic Tin Plate Show
