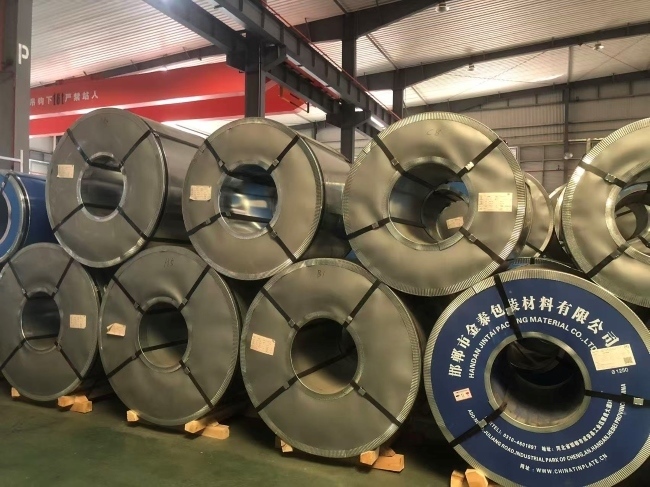

Premium Electrolytic Tin Plate Sheets & Coils for Food Cans, Aerosol Containers, and Paint Packaging
Electrolytic Tin Plate (ETP) represents the pinnacle of packaging material technology, combining the strength of cold-rolled steel with the exceptional protective qualities of commercial pure tin. Our ETP sheets and coils feature precision electrolytic coating that provides superior corrosion resistance, making them ideal for demanding applications including food containers, aerosol cans, paint packaging, and industrial containers. Available in various tempers (DR-7, DR-8, DR-9) and surface finishes, these materials undergo rigorous quality control to meet international standards including ASTM A623, EN 10203, and JIS G3303. The material's excellent solderability and weldability enable efficient manufacturing processes while maintaining structural integrity. With customizable thickness, width, and coating weights, our ETP products offer versatile solutions for diverse packaging requirements across multiple industries.
Features & Advantages:
Superior corrosion resistance against acidic and alkaline contents
Excellent solderability and weldability for manufacturing efficiency
Multiple temper grades (T-2 to DR-10) for various strength requirements
Customizable tin coating weights from 1.1/1.1 to 11.2/11.2 g/m²
Beautiful metallic appearance with various surface finishes
Excellent formability and deep drawing capabilities
Food-safe material compliant with international standards
Applications:
Food cans and containers (vegetables, fruits, seafood)
Aerosol containers and spray cans
Paint and chemical packaging
Oil containers and industrial pails
Electronic components and battery casings
Technical Parameters:
| Property | Specifications |
|---|---|
| Material Standard | ASTM A623, EN 10203, GB2520, JIS G3303 |
| Base Material | MR, SPCC |
| Thickness | 0.15-0.5mm (±0.01mm tolerance) |
| Width | 600-1050mm (customizable) |
| Temper Grades | T1-T5, DR7-DR9, TH550-TH660 |
| Tin Coating | 1.1/1.1 to 11.2/11.2 g/m² |
| Surface Finish | Bright, Stone, Silver, Matte |
| Coil Dimensions | ID 420/508/610mm, OD 1000-1250mm |
Workshop Show
OUR COMPANY
Production Process
APPLICATION
CERTIFICATE
FAQ:
What is the difference between ETP and TFS?
ETP features tin coating for superior solderability, while TFS uses chromium coating for enhanced paint adhesion.
Can you provide customized coating weights?
Yes, we offer customizable tin coating from 1.1/1.1 to 11.2/11.2 g/m² based on application requirements.
What certifications do your products have?
Our products comply with ISO 9001, SGS, and various international standards including ASTM and EN.
Do you offer sample availability?
Yes, we provide free samples with customers responsible for shipping costs.
What is the minimum order quantity?
MOQ is 25 tons with flexible options for larger orders.
