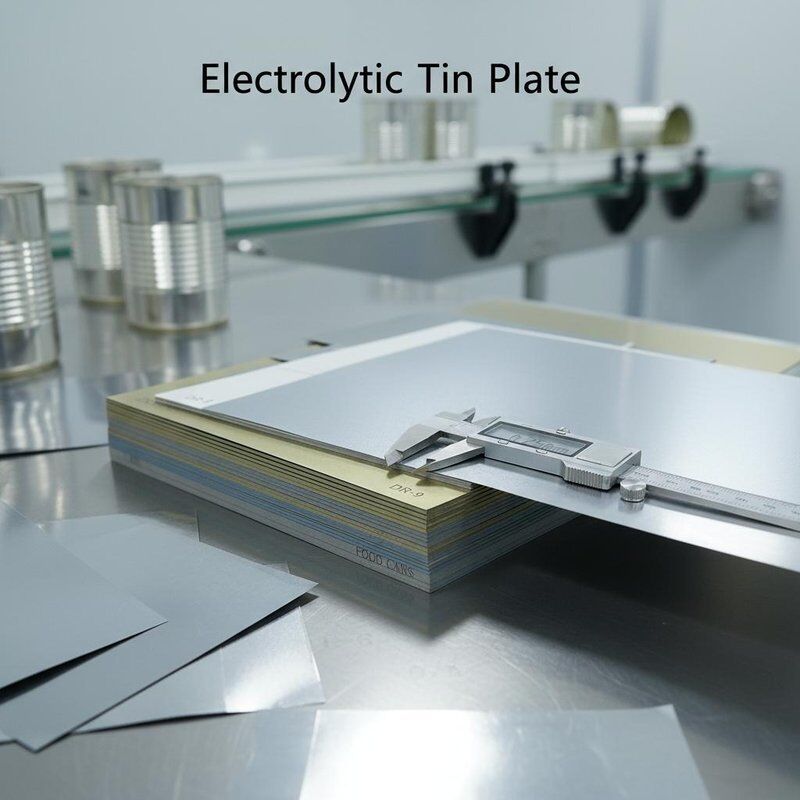

Tinplate is a thin steel sheet coated with tin, featuring an extremely beautiful metallic luster along with excellent corrosion resistance, solderability, and weldability. Tinplate is used for manufacturing various types of containers including food cans, beverage cans, 18-liter cans, and artistic cans. Beyond containers, tinplate is increasingly used for electrical machinery parts and numerous other industrial applications.
| Excellent Corrosion Resistance | By selecting proper coating weight, appropriate corrosion resistance is achieved against container contents. |
| Excellent Paintability & Printability | Printing is beautifully finished using various lacquers and inks for superior visual appeal. |
| Excellent Solderability & Weldability | Widely used for making various types of cans by soldering or welding processes. |
| Excellent Formability & Strength | By selecting proper temper grade, appropriate formability is obtained for various applications while maintaining required strength after forming. |
| Beautiful Appearance | Characterized by beautiful metallic luster with various surface roughness options by selecting substrate steel sheet surface finish. |
| Parameter | Specification |
|---|---|
| Product | Tinplate Sheet, Tinplate Coil |
| Standard | ASTM A623, EN 10203, GB2520-2000, JISG3303-2002, DINEN10202-2001 |
| Material | MR SPCC |
| Thickness | 0.15-0.5mm (tolerance -/+0.01mm) |
| Width | 700-1150mm (Tolerance: 0-3mm) |
| Cutting Length | 700-1150mm (Tolerance: 0-3mm) or as coils |
| Annealing | BA & CA |
| Temper | T1 T2 T3 T4 T5 DR7 DR8 DR9 TH550 TH580 TH620 TH660 |
| Tin Coating | 1.1/1.1 2.0/2.0 2.8/2.8 2.8/5.6 5.6/5.6 8.4/8.4 11.2/11.2 g/㎡ |
| Surface Finish | Bright, Stone, Silver, Matt |
| Coil Diameter | ID 420/508/610mm, OD from 1,000 to 1,250mm |
| Coil Weight | 3-10 MT |

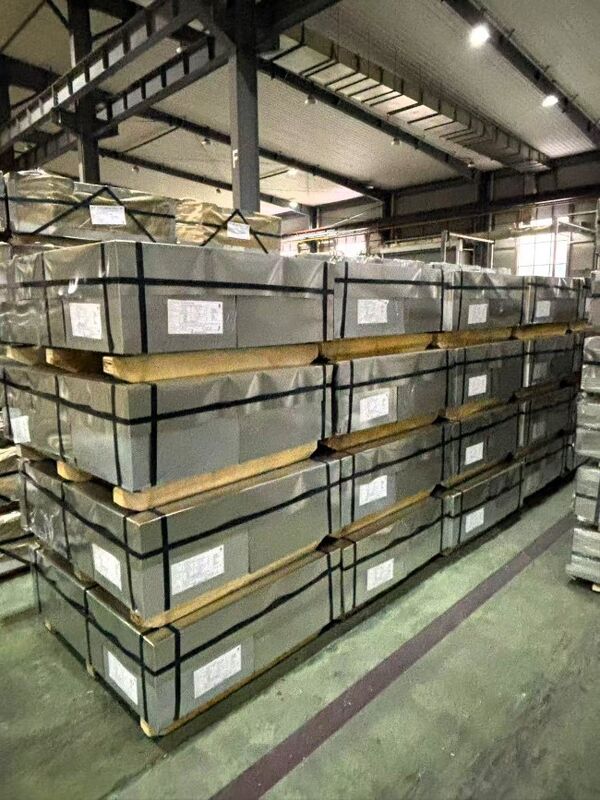

| Package | Seaworthy standard with wooden pallet, corner protected by sheet or coils according to customer requirements |
| Applications | Metal packaging for paint, chemical cans, aerosol cans, food cans; battery, electric cable, and other industries |
Shanghai Quanjiang Industrial Co., Ltd is a large-scale enterprise integrating manufacturing and international export. Established in 2001 with an area of more than 40,000 square meters located in Shanghai, China. We feature advanced production equipment including pushing machines, presses, large heat treatment furnaces, chamfering machines, sawing machines, large sandblasting machines, and various testing instruments.
